• Country
• United States of America (USA)

• Manufacturer / Brand
• Garod Radio Corp.; Brooklyn (NY)

• Year
• 1936 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 41682

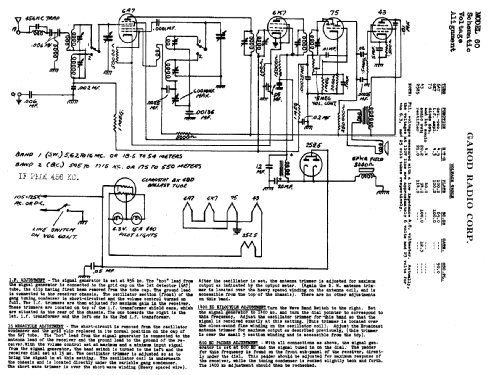

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6A7 6K7 75 43 25Z5

• Number of Transistors

• Semiconductors
• BK49D

• Main principle
• Superheterodyne (common); ZF/IF 456 kHz

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• AC/DC-set / 105-125 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• from Radiomuseum.org

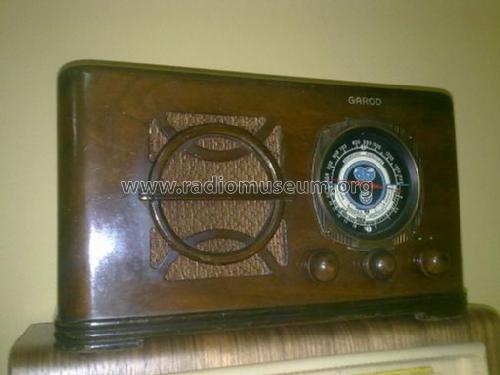

• Model: 60 - Garod Radio Corp.; Brooklyn NY

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 7 = 1936 and before
