831 custom console ch= 831 + amp
Garod Radio Corp.; Brooklyn (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Garod Radio Corp.; Brooklyn (NY)
- Year
- 1937 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 227921
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 14
- Number of Transistors
- Main principle
- Superheterodyne (common); ZF/IF 456 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- AC/DC-set / 105-125 / 220 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 25 cm = 9.8 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: 831 custom console ch= 831 + amp - Garod Radio Corp.; Brooklyn NY
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 640 x 1150 x 450 mm / 25.2 x 45.3 x 17.7 inch
- Notes
-

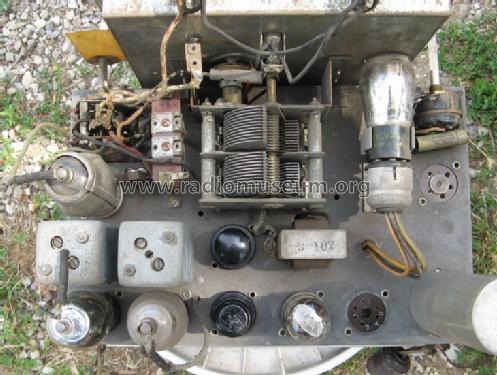

Custom console using the 831 chassis plus a second chassis (push-pull amplifier).
The output tube of the 831 ist replaced by a triode as the inverter/driver stage for the following amp.
The 6J8 replaces 6A8, and 6C5 replaces 25A6. both sockets are still marked 6A8 and 25A6!
- Author
- Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
