• Country
• Great Britain (UK)

• Manufacturer / Brand
• Garrard Eng. & Mfg. Co. Ltd.; Swindon, England

• Year
• 1952 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 101010

Click on the schematic thumbnail to request the schematic as a free document.

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz 100-130 / 200-250 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: Universal RC80 - Garrard Eng. & Mfg. Co. Ltd.;

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 13.25 x 9.25 x 15.5 inch / 337 x 235 x 394 mm

• Notes

• The Garrard model RC80 is a three speed Automatic Record Changer, capacity 10 records of one size, 10 or 12 inch at 78rpm, 7, 10 or 12 inch at 33⅓ rpm, and 7 inch at 45 rpm. Two spindles, one for large hole 45rpm records, and a stepped sloping spindle for all other types of records. Supplied with a plug-in headshell and accessories which enable the fitting of a wide range of cartridges.

• Literature/Schematics (1)
• -- Original-techn. papers.

• Literature/Schematics (2)

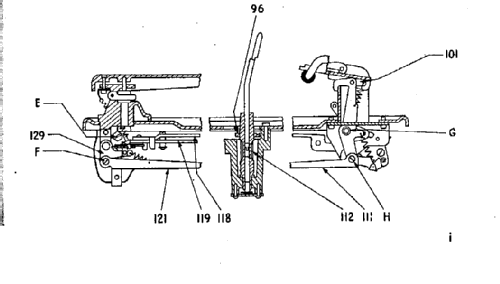

• - - Manufacturers Literature (Service instructions for Garrard model RC80)

• Literature/Schematics (3)

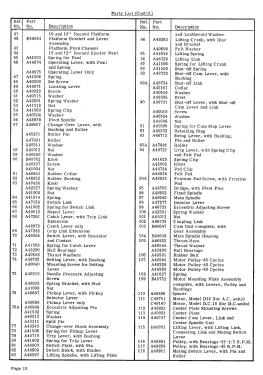

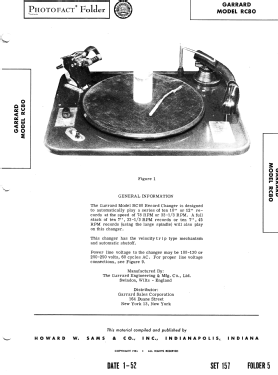

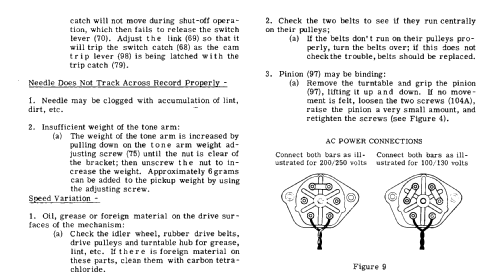

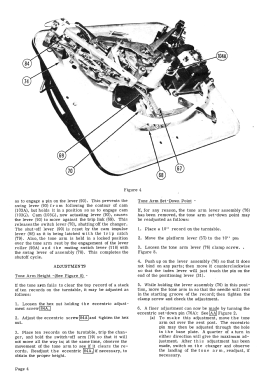

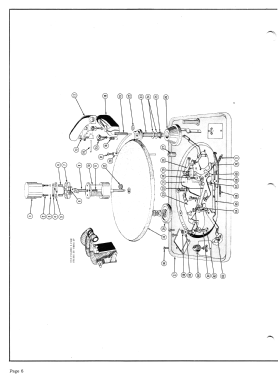

• Photofact Folder, Howard W. SAMS (Set 157, folder 5, dated 1-52)

• Author
• Model page created by Mario Coelho. See "Data change" for further contributors.
