- Country
- United States of America (USA)
- Manufacturer / Brand
- Gates Radio & Supply Co.; Quincy, IL
- Year
- 1934 ?
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 41814

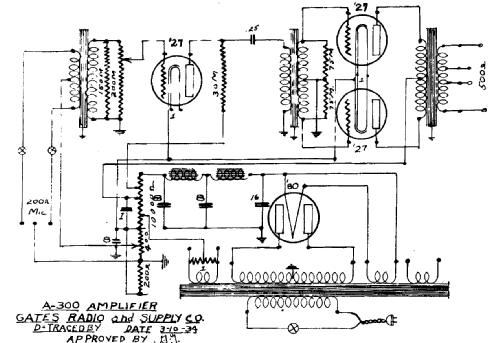

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- -Loudspeaker incorporated, but system not known.
- from Radiomuseum.org
- Model: A-300 - Gates Radio & Supply Co.;
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 6 = 1935 and before
- Literature/Schematics (1)
- Riders 6-1
