2004
GBC; Milano
- Country
- Italy
- Manufacturer / Brand
- GBC; Milano
- Year
- 1969 ??
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 336754
-
- alternative name: Gian Bruto Castelfranchi

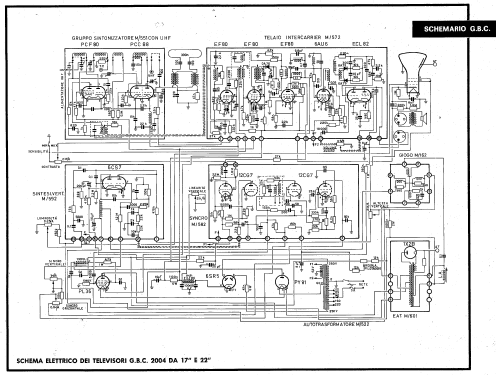

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 15
- Valves / Tubes
- PCF80 PCC88 EF80 EF80 EF80 6AU6 ECL82 6CS7 12CG7 12CG7 PL36 6SR5 1X2B PY81 unknown_CRT
- Number of Transistors
- Main principle
- Superheterodyne (common)
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 140; 160; 220; 250 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- from Radiomuseum.org
- Model: 2004 - GBC; Milano
- Notes
-
Televisore in bianco/nero per sola VHF. Sul gruppo VHF è previsto un ingresso solo del segnale UHF da un convertitore esterno.
- Mentioned in
- -- Schematic (Schemario GBC su: “Sperimentare” edizioni J.C.E. numero speciale 10, ottobre 1969.)
- Author
- Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
