Altoparlante Ellittico AC/1230-00 65x255-41
GBC; Milano
- Country
- Italy
- Manufacturer / Brand
- GBC; Milano
- Year
- 1973 ??
- Category
- Loudspeaker, headphone or earphone
- Radiomuseum.org ID
- 358316
-
- alternative name: Gian Bruto Castelfranchi
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 3 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: Altoparlante Ellittico AC/1230-00 65x255-41 - GBC; Milano
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 225 x 66 x 70 mm / 8.9 x 2.6 x 2.8 inch
- Notes
-
Caratteristiche:
- Risposta in Frequenza: 110 ÷ 8.000 Hz
- Flusso: 8.400 Gauss
- Risonanza: 180 Hz
- Impedenza: 4 Ω
- Mentioned in

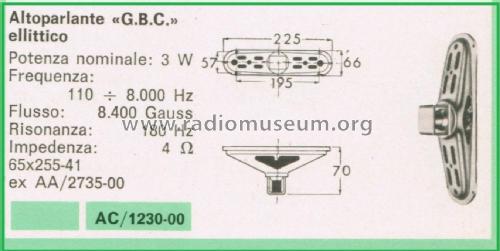

- -- Original prospect or advert (GBC Componenti Elettronici, edizione 1973.)
- Author
- Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
