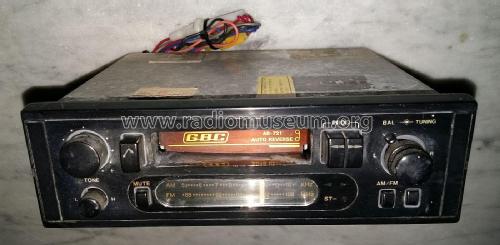

Autoradio AM/FM Stereo Cassette AB-721

GBC; Milano

Data
Forum
Pictures
Collections

  • Year
  • 1980 ??
  • Category
  • Car Radio, perhaps also + sound player/recorder
  • Radiomuseum.org ID
  • 339781
    • alternative name: Gian Bruto Castelfranchi

 Technical Specifications

  • Number of Transistors
  • 5
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Autoradio AM/FM Stereo Cassette AB-721 - GBC; Milano
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 180 x 50 x 150 mm / 7.1 x 2 x 5.9 inch
  • Notes

  • Autoradio stereo a cassette con OM e FM stereo. Sintonia ad induttori variabili. Controllo di tono e tasto stereo/mono.

    5 transistor e 4 Circuiti Integrati, uno solo dei quali presente nel database di RMORG..

    Made in Korea.

  • Net weight (2.2 lb = 1 kg)
  • 1.150 kg / 2 lb 8.5 oz (2.533 lb)
  • Author
  • Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
