• Country
• Italy

• Manufacturer / Brand
• GBC; Milano

• Year
• 1960 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 192194

• • alternative name: Gian Bruto Castelfranchi

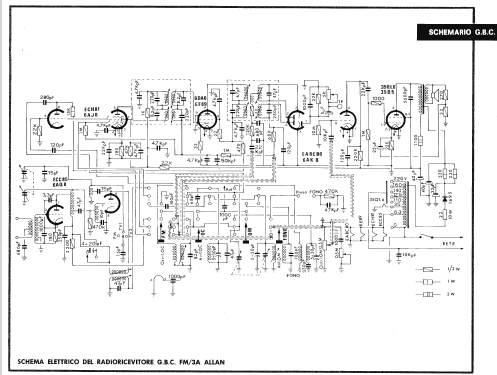

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECC85 or 6AQ8 ECH81 or 6AJ8 EF89 or 6DA6 EABC80 or 6AK8 35QL6 or 35D5

• Number of Transistors

• Semiconductors
• 1S1695

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: FM/3A - GBC; Milano

• Shape
• Tablemodel with Push Buttons.

• Notes

• Riceve anche audio TV.

  Ingresso Fono. Controllo toni alti e bassi.

• Mentioned in
• -- Schematic (“Sperimentare” edizioni J.C.E. numero speciale 10, ottobre 1969.)

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
