• Country
• Italy

• Manufacturer / Brand
• GBC; Milano

• Year
• 1961/1962

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 113848

• • alternative name: Gian Bruto Castelfranchi

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EM81 UL84 UY85

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 145; 160; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org

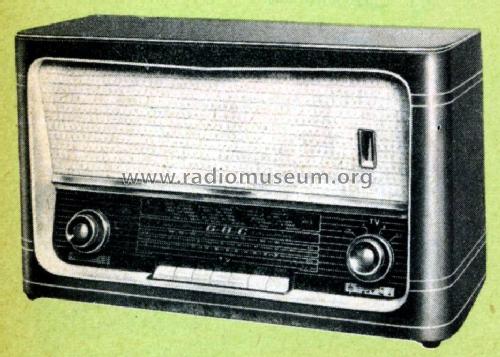

• Model: FM/90 - GBC; Milano

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 480 x 330 x 230 mm / 18.9 x 13 x 9.1 inch

• Notes
• Gamme d'onda: medie, corte, FM, audio TV. Ingresso fono. Mobile in legno di mogano.
  Wave bands: BC, SW, FM, TV-sound. Mahogany cabinet.

• Price in first year of sale
• 53,900.00 ITL

• Source of data
• Guida Pratica Antique Radio (1) 1999

• Mentioned in
• -- Original prospect or advert

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
