• Country
• Italy

• Manufacturer / Brand
• GBC; Milano

• Year
• 1969 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 338983

• • alternative name: Gian Bruto Castelfranchi

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 5

• Semiconductors
• AC126 AC127 AC187 AC188 AC187 10D-1 10D-1 BZY94

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 160; 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 10 W (max.)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Maber FV-700 - GBC; Milano

• Shape
• Tablemodel, with any shape - general.

• Notes

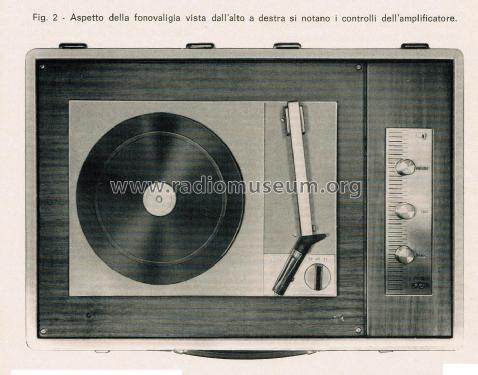

• Giradischi stereo a 3 velocità, 33 45 e 78 giri, completo di 2 altoparlanti staccabili e posizionabili opportunamente distanti dal mobile. Controllo di tono. Ingresso ed uscita per registratore.
  Utilizza il piatto giradischi Philips modello GC 032 con braccio munito di cartuccia piezoelettrica con 2 puntine, per dischi a 78 giri e per dischi microsolco.
  Risposta in frequenza 50 ÷ 15.000 Hz.

• Mentioned in
• Selezione Radio TV, JCE editore, numero 10 ottobre 1969

• Author
• Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
