Registratore a Nastro SM/14
GBC; Milano
- Country
- Italy
- Manufacturer / Brand
- GBC; Milano
- Year
- 1960 ??
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 344728
-
- alternative name: Gian Bruto Castelfranchi
- Number of Tubes
- 3
- Number of Transistors
- Semiconductors
- Selengleichrichter
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Tape Recorder
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 2.5 W (undistorted)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: Registratore a Nastro SM/14 - GBC; Milano
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 330 x 150 x 210 mm / 13 x 5.9 x 8.3 inch
- Notes
-
Registratore a nastro fornito in kit con velocità 4,75 e 9,5 cm/sec. Utilizza bobine di diametro 3,5".
Valigetta in legno ricoperta di finta pelle.
- Mentioned in

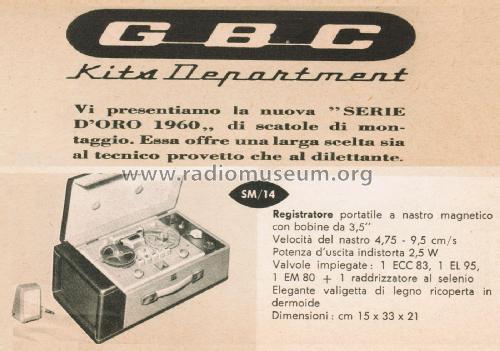

- -- Original prospect or advert (Da: “Selezione Radio-TV” JCE editore, numero 6 giugno 1960.)
- Author
- Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
