• Country
• Italy

• Manufacturer / Brand
• Amtron, (High-Kit, Amtroncraft); Milano

• Year
• 1968–1973 ?

• Category
• Kit (Parts plus instruction) or building instructions only

• Radiomuseum.org ID
• 162154

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 5

• Semiconductors
• BC209 AC180 AC181 AC180 AC181 AA119

• Wave bands
• - without

• Power type and voltage
• Dry Batteries / 2 x 4,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 cm = 2.6 inch

• Power out
• 0.5 W (unknown quality)

• Material
• Various materials

• from Radiomuseum.org

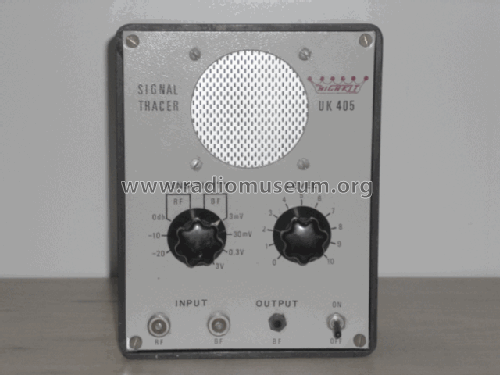

• Model: High-Kit Signal Tracer UK405 - Amtron, High-Kit, Amtroncraft;

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 135 x 60 x 175 mm / 5.3 x 2.4 x 6.9 inch

• Notes

• Scatola di montaggio marchiata High-Kit; comandi in inglese; distribuito dalla GBC.

  Strumento per ricerca guasti nei circuiti AM/FM e TV. Uscita per il collegamento di un oscilloscopio.

• Mentioned in
• -- Original prospect or advert (Amtron Scatole di Montaggio Elettroniche Catalogo 6 1972/1973)

• Literature/Schematics (1)
• - - Manufacturers Literature (Amtron Elektronik-Bausätze, Bauanleitungen 1971/72 (deutsch))

• Literature/Schematics (2)

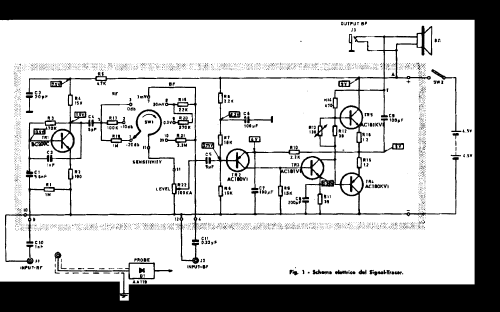

• -- Schematic
