Tenko 23+
GBC; Milano
- Country
- Italy
- Manufacturer / Brand
- GBC; Milano
- Year
- 1968 ??
- Category
- Citizen Band Equipment
- Radiomuseum.org ID
- 300023
-
- alternative name: Gian Bruto Castelfranchi
- Main principle
- Transceiver
- Wave bands
- Short Wave (SW only)
- Power type and voltage
- Line / Storage batteries (perhaps also batteries) / 220 / 12 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
- Power out
- 3.5 W (5 W max.)
- Material
- Metal case
- from Radiomuseum.org

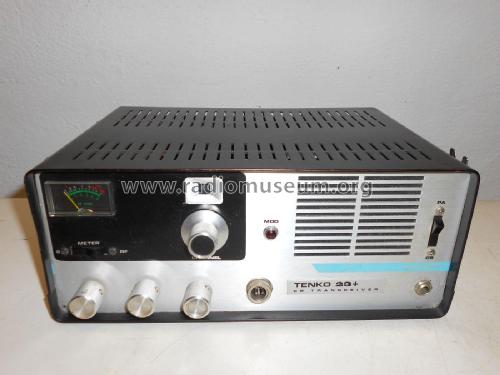

- Model: Tenko 23+ - GBC; Milano
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 300 x 130 x 210 mm / 11.8 x 5.1 x 8.3 inch
- Notes
-
Apparecchio valvolare CB 27 MHz - 23 canali - controllo volume/squelch - commutatore pa/cb - commutatore Signal/RF - lampada spia modulazione - strumento a lancetta S-meter/power.
Tube type 23 channels CB transceiver, amplitude modulation. "Public adress" switch. S-units/power meter. Modulation control via light bulb.
Made in Japan
- Net weight (2.2 lb = 1 kg)
- 5.8 kg / 12 lb 12.4 oz (12.775 lb)
- Author
- Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
