Titty FV/40
GBC; Milano
- Country
- Italy
- Manufacturer / Brand
- GBC; Milano
- Year
- 1967
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 167230
-
- alternative name: Gian Bruto Castelfranchi
Produzione G.B.C. 1967
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Rec.Player+Audio.Amp+LS
- Power type and voltage

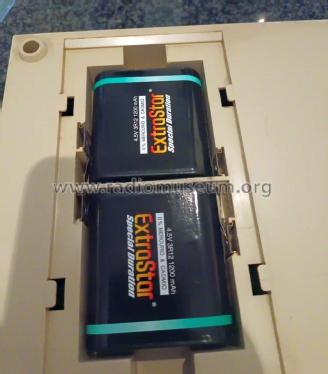

- Dry Batteries / 2 x 4,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 1 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Titty FV/40 - GBC; Milano
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 285 x 100 x 217 mm / 11.2 x 3.9 x 8.5 inch
- Notes
- Fonovaligia miniatura amplificata a transistor.
Giradischi a due velocità: 33 - 45 giri suona dischi di 18 cm di diametro.
- Net weight (2.2 lb = 1 kg)
- 1.6 kg / 3 lb 8.4 oz (3.524 lb)
- Price in first year of sale
- 18,800.00 ITL
- Mentioned in
- Catalogo produzione G.B.C. 1967
- Author
- Model page created by Eduard Abfalterer. See "Data change" for further contributors.
