Tiziano UT/3005
GBC; Milano
- Country
- Italy
- Manufacturer / Brand
- GBC; Milano
- Year
- 1968 ??
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 336804
-
- alternative name: Gian Bruto Castelfranchi

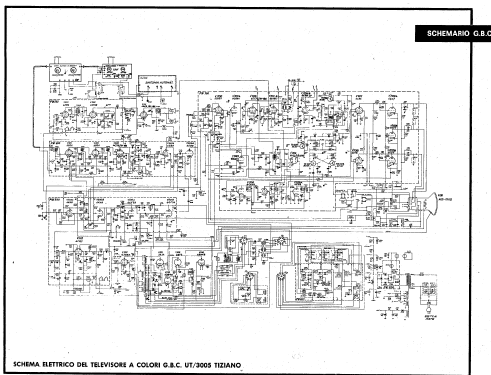

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 29
- Valves / Tubes
- PC900 PCF806 6EW6 6DT6 6BQ5 or EL84 12HG7 6GH8A 6EJ7 or EF184 6BE8 6GX6 6GU7 6BZ6 6BZ6 6EJ7 or EF184 6EB8 6GU7 6AL5 or EAA91 6GX6 6KA8 6GF7A 6GH8A 6EB8 6J6A 6FQ7 3A3A 2AV2 6DW4B 6BK4B A63-15XD
- Number of Transistors
- 6
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- 2 Loudspeakers
- from Radiomuseum.org
- Model: Tiziano UT/3005 - GBC; Milano
- Notes
-
Televisore a colori VHF/UHF. Pochi transistor e quindi una quantità notevole di valvole. Accanto al cinescopio c'è una sigla "A63-15XD".
- Mentioned in
- -- Schematic (Schemario GBC su: “Sperimentare” edizioni J.C.E. numero speciale 10, ottobre 1969.)
- Author
- Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
