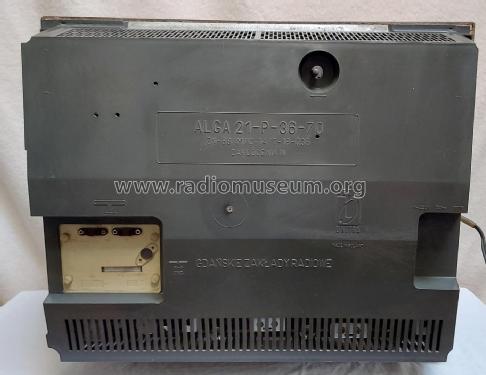

Alga 21-P-36-70
Gdanskie Zaklady Radiowe
- Country
- Poland
- Manufacturer / Brand
- Gdanskie Zaklady Radiowe
- Year
- 1968–1971 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 360609
- Number of Tubes
- 17
- Valves / Tubes
- PCC88 PCF82 EF80 EF80 EF80 PCL84 EBF89 PCF82 PL84 ECH84 PCL85 EAA91 PCF82 PL36 PY88 EY86 AW36-801
- Main principle
- Superheterodyne (common); ZF/IF 38000 kHz
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Wooden case
- from Radiomuseum.org
- Model: Alga 21-P-36-70 - Gdanskie Zaklady Radiowe
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 480 x 420 x 385 mm / 18.9 x 16.5 x 15.2 inch
- Notes
-
Band VHF 12 channels OIRT, speaker type GD18-13/2KE, 100Hz-8kHz audio bandwidth, dimensional image stabilization, horizontal automatic phase synchronization, picture tube 90 degrees without ion trap, power consumption 190W
- Net weight (2.2 lb = 1 kg)
- 20 kg / 44 lb 0.8 oz (44.053 lb)
- Author
- Model page created by Marcin Seliwiak. See "Data change" for further contributors.
