• Country
• Great Britain (UK)

• Manufacturer / Brand
• GEC, General Electric Co Ltd., GENALEX; London

• Year
• 1954 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 348398

• • Brand: Gecophone

• Number of Tubes
• 5

• Valves / Tubes
• U78 N78 DH77 W77 X79

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 40 - 100 Hz, 110/130; 210/230 Volt

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet.

• Material
• Wooden case

• from Radiomuseum.org

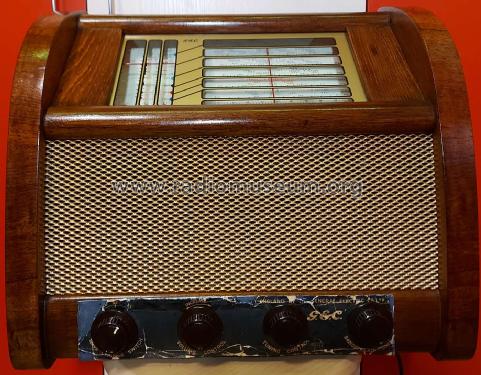

• Model: BC5542L - GEC, General Electric Co Ltd.,

• Shape
• Tablemodel, slant panel.

• Dimensions (WHD)
• 450 x 385 x 240 mm / 17.7 x 15.2 x 9.4 inch

• Author
• Model page created by Paweł Banach. See "Data change" for further contributors.

• Other Models

• Here you find 443 models, 287 with images and 237 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
