- Country
- Great Britain (UK)
- Manufacturer / Brand
- GEC, General Electric Co Ltd., GENALEX; London
- Year
- 1954
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 330648
-
- Brand: Gecophone
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 470 kHz
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 200; 230; 250 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Wooden case
- from Radiomuseum.org
- Model: BC7443R - GEC, General Electric Co Ltd.,
- Shape
- Tablemodel, Box - most often with Lid (NOT slant panel).
- Dimensions (WHD)
- 20.375 x 10.125 x 15.25 inch / 518 x 257 x 387 mm
- Notes
-

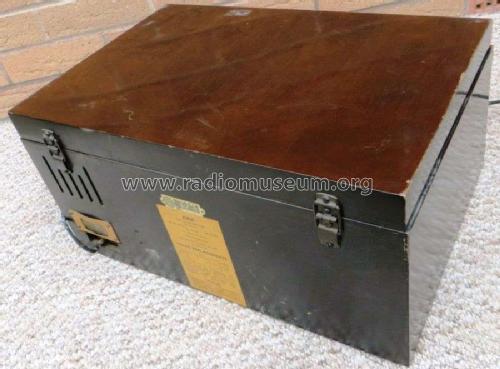

An AC mains 3 band table radiogram with a Collaro RC54 3 speed autochanger with a turnover crystal pickup. 6 x 4 inch elliptical loudspeaker, terminals for an extension loudspeaker. Same as the GEC BC7443 which has a Garrard 3 speed autochanger.
- Literature/Schematics (1)
- - - Manufacturers Literature (GEC Service bulletin No. 168 BC7443 and BC7443R dated 56/1)
- Author
- Model page created by Howard Craven. See "Data change" for further contributors.
