• Country
• Great Britain (UK)

• Manufacturer / Brand
• GEC, General Electric Co Ltd., GENALEX; London

• Year
• 1933

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 159279

• • Brand: Gecophone

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• MS4B MS4B PT4 U14

• Main principle
• TRF (Tuned-Radio-Frequency but use of regeneration unknown)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 100-150/200-250 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: Gala BC3335 - GEC, General Electric Co Ltd.,

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 14.6 x 18.75 x 10.25 inch / 371 x 476 x 260 mm

• Price in first year of sale
• 19.00 GBP

• Source of data
• -- Original prospect or advert

• Mentioned in
• Osram Valve Guide, August 1938

• Literature/Schematics (1)

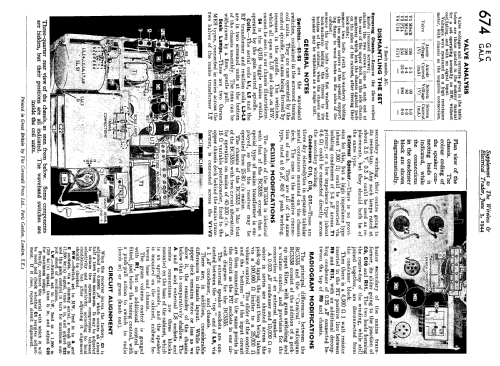

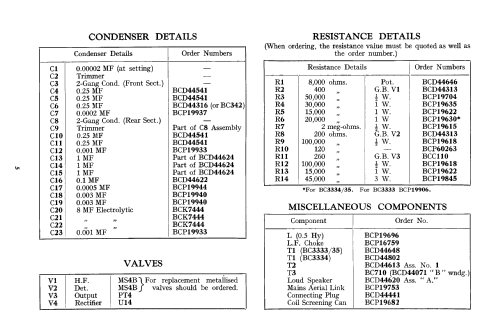

• - - Manufacturers Literature (GEC Service Bulletin for Gala BC3335 BC3333 BC3334 dated January 1933)

• Author
• Model page created by Mike Izycky. See "Data change" for further contributors.
