Transistor Six BC1650
GEC, General Electric Co Ltd., GENALEX; London
- Country
- Great Britain (UK)
- Manufacturer / Brand
- GEC, General Electric Co Ltd., GENALEX; London
- Year
- 1957 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 170800
-
- Brand: Gecophone

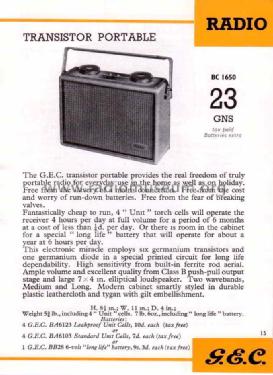

Original prospect
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 6
- Main principle
- Superheterodyne (common); ZF/IF 470 kHz
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Dry Batteries / PP8: 1 x 6V; D: 4 x 1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: Transistor Six BC1650 - GEC, General Electric Co Ltd.,
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 11 x 8.25 x 4 inch / 279 x 210 x 102 mm
- Notes
-
A 2 band battery portable transistor radio, housed in a wooden cabinet with a plastic leathercloth and tygan cover. 6 germanium transistors and crystal diode. Elliptical loudspeaker 5 x 4 inch. Price 23 guineas.
- Price in first year of sale
- 24.15 £
- Mentioned in
- -- Original prospect or advert
- Literature/Schematics (1)
- -- Schematic
- Literature/Schematics (2)
- Radio And Television Servicing books (R&TVS) (GEC model BC1650)
- Author
- Model page created by Alessandro De Poi. See "Data change" for further contributors.
