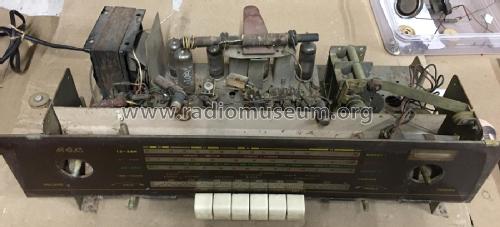

BC 5564

GEC India

Data
Forum
Pictures
Collections

  • Year
  • 1967 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 342266

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast plus more than 2 Short Wave bands.
  • Power type and voltage
  • Alternating Current supply (AC) / 40-100Hz, 200; 230; 250 Volt
  • Loudspeaker
  • 2 Loudspeakers / Ø 4 inch = 10.2 cm
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: BC 5564 - GEC India
  • Shape
  • Tablemodel, with any shape - general.
  • Notes

  • Bands:

    • SW1 = 14 - 25 m
    • SW2 = 22 - 36 m
    • SW3 = 35 - 90 m
    • MW = 180 - 585 m
  • Net weight (2.2 lb = 1 kg)
  • 8 kg / 17 lb 9.9 oz (17.621 lb)
  • Author
  • Model page created by Uday Kalburgi. See "Data change" for further contributors.
