• Country
• Italy

• Manufacturer / Brand
• Geloso SA; Milano

• Year
• 1939

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 308193

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6A8G 6K7G 6Q7G 6V6G 5Y3G

• Main principle
• Superheterodyne (common); ZF/IF 467 kHz

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 110-220 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch

• Power out
• 2 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

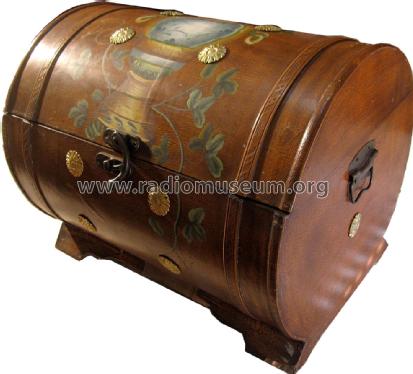

• Model: Bauletto G57-R - Geloso SA; Milano

• Shape
• Design Radio or Novelty / Gadget - fancy or unusual shape.

• Dimensions (WHD)
• 500 x 450 x 350 mm / 19.7 x 17.7 x 13.8 inch

• Notes

• Produzione artigianale Italiana del dopoguerra.

• Net weight (2.2 lb = 1 kg)
• 16 kg / 35 lb 3.9 oz (35.242 lb)

• Author
• Model page created by Spartaco Gori. See "Data change" for further contributors.
