• Country
• Italy

• Manufacturer / Brand
• Geloso SA; Milano

• Year
• 1967 ??

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 114855

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 12AX7 12AX7 12AT7 EL503 EL503 EL503 EL503

• Number of Transistors

• Semiconductors
• BY126 B30C300

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 125 W (unknown quality)

• Material
• Metal case, TUBES VISIBLE

• from Radiomuseum.org

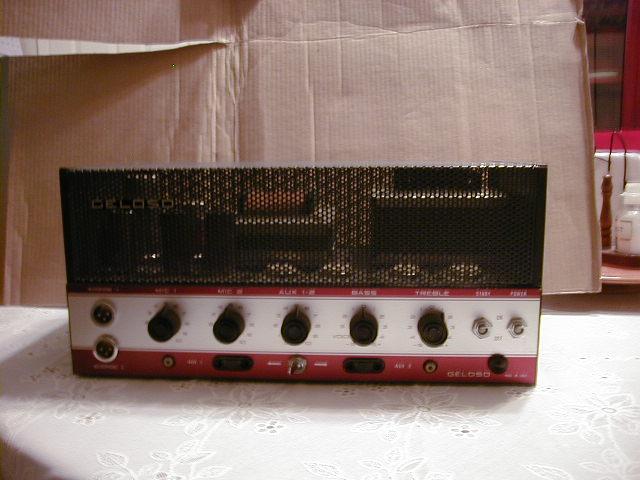

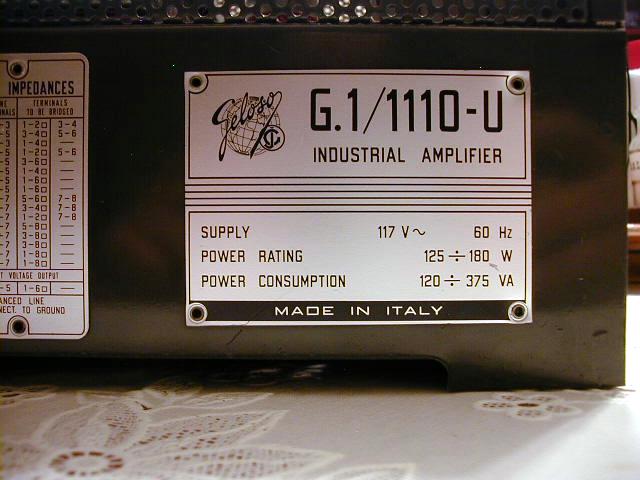

• Model: G1/1110U - Geloso SA; Milano

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 430 x 190 x 220 mm / 16.9 x 7.5 x 8.7 inch

• Net weight (2.2 lb = 1 kg)
• 16.3 kg / 35 lb 14.4 oz (35.903 lb)

• Literature/Schematics (1)
• -- Original-techn. papers.
