G16/11
Geloso SA; Milano
- Country
- Italy
- Manufacturer / Brand
- Geloso SA; Milano
- Year
- 1969
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 172428
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 11
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 160; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- from Radiomuseum.org

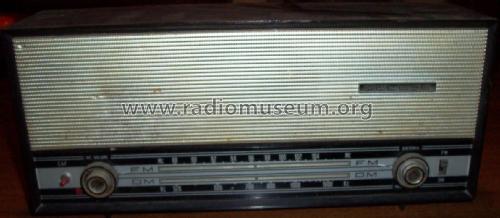

- Model: G16/11 - Geloso SA; Milano
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 380 x 160 x 120 mm / 15 x 6.3 x 4.7 inch
- Notes
- 5 diodi.
- Price in first year of sale
- 28,900.00 ITL
- Mentioned in
- Catalogo Geloso, primavera 1969
- Literature/Schematics (1)
- -- Schematic (Schemario di Apparecchi Radio a Transistori Vol. 1° Antonelliana)
- Author
- Model page created by Eduard Abfalterer. See "Data change" for further contributors.
