G16/4
Geloso SA; Milano
- Country
- Italy
- Manufacturer / Brand
- Geloso SA; Milano
- Year
- 1969 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 105108
- Number of Transistors
- 7
- Main principle
- Superheterodyne (common); ZF/IF 475 kHz; 3 AF stage(s)
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 8 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
- Power out
- 1.1 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

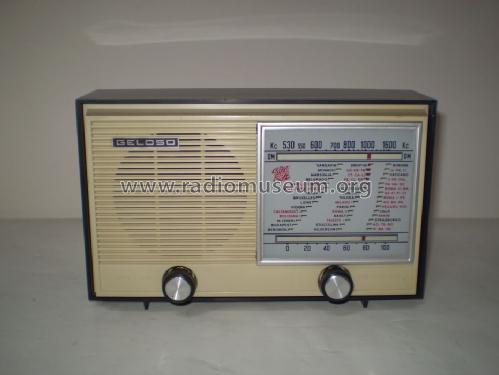

- Model: G16/4 - Geloso SA; Milano
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 250 x 150 x 120 mm / 9.8 x 5.9 x 4.7 inch
- Notes
-
Estetica simile al G3312. Ricezione solo onde medie (530-1600 Kc). Alimentazione con 8 pile mezza torcia da 1,5 volt. Prezzo 1969: 12.000 Lire.
- Net weight (2.2 lb = 1 kg)
- 1.3 kg / 2 lb 13.8 oz (2.863 lb)
- Source of data
- - - Data from my own collection
- Mentioned in
- -- Original prospect or advert (Catalogo Geloso, primavera 1969)
- Author
- Model page created by Giuseppe Antonio Tusini. See "Data change" for further contributors.
