• Country
• Italy

• Manufacturer / Brand
• Geloso SA; Milano

• Year
• 1968

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 116033

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• AC187 or. AC181 BC113 or. BC148 AC188 or. AC180 BC225 or. BC178

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 220-240 / C: 6 x 1,5 V / 12 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

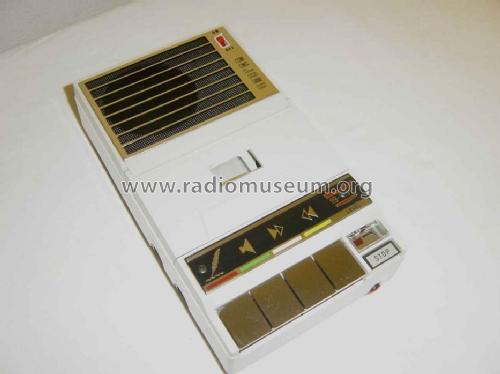

• Model: G19/111 - Geloso SA; Milano

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 115 x 60 x 210 mm / 4.5 x 2.4 x 8.3 inch

• Notes

• Registratore a cassette.

  L'apparecchio è dotato di una particolare spina con 4 contatti tramite la quale è possibile, con 2 appositi cavi, l'alimentazione da rete elettrica 220-240 V 50/60 Hz oppure da accumulatore a 12 V (mediante cavetto n. 20/32). Innestando il cavo per l'alimentazione esterna, le batterie interne vengono automaticamente disinserite.

  I transistor sono elencati uno per tipo.

• Mentioned in
• Bollettino Tecnico Geloso (n. 107, Estate 1968)

• Author
• Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
