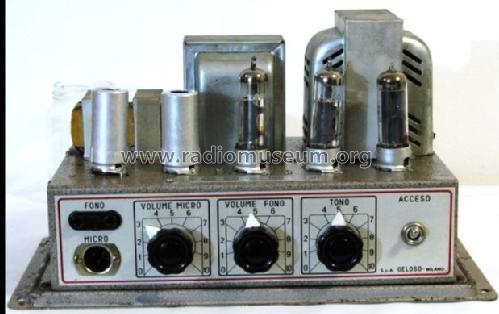

G215-A
Geloso SA; Milano
- Country
- Italy
- Manufacturer / Brand
- Geloso SA; Milano
- Year
- 1960 ??
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 174105
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 110-290 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 12 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: G215-A - Geloso SA; Milano
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 330 x 190 x 180 mm / 13 x 7.5 x 7.1 inch
- Notes
- Entrata per microfono, fono, sintonizzatore o registratore magnetico. Controllo di tono, 16 impedenze di uscita: da 1,25 a 500 ohm con 16 valori intermedi ed uscita a impedenza costante 70 Volt.
- Source of data
- - - Data from my own collection
- Author
- Model page created by Aldo Molina. See "Data change" for further contributors.
