G219PA G219/6 (G.219/6-PA)
Geloso SA; Milano
- Country
- Italy
- Manufacturer / Brand
- Geloso SA; Milano
- Year
- 1954/1955
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 85303

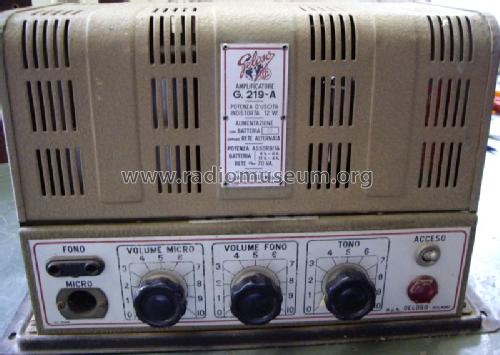

Front View
Inside, front view
Inside, back view
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Line / Storage batteries (perhaps also batteries) / 110, 125, 140, 160, 220 / 6 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 11 W (15 W max.)
- Material
- Metal case
- from Radiomuseum.org
- Model: G219PA [G219/6 ] - Geloso SA; Milano
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 328 x 178 x 194 mm / 12.9 x 7 x 7.6 inch
- Notes
- Amplificatore 11-15 W bassa frequenza; alimentazione rete e accumulatore 6 V.
- Net weight (2.2 lb = 1 kg)
- 7.5 kg / 16 lb 8.3 oz (16.52 lb)
- Mentioned in
- Bollettino Tecnico Geloso N. 54
- Literature/Schematics (1)
- Catalogo Generale Radioprodotti Geloso 1954-55, p. 164
- Author
- Model page created by Alessandro De Poi. See "Data change" for further contributors.
