Registratore A Nastro G250-N
Geloso SA; Milano
- Country
- Italy
- Manufacturer / Brand
- Geloso SA; Milano
- Year
- 1954–1956
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 85480

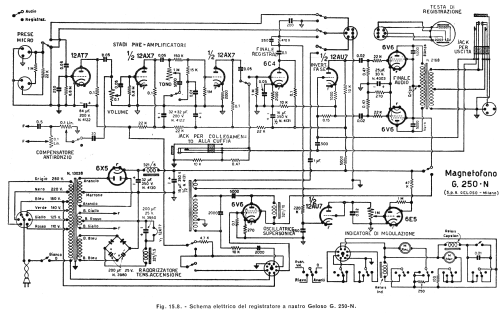

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 9
- Main principle
- Audio-Amplification
- Details
- Tape Recorder
- Power type and voltage
- Alternating Current supply (AC) / 110, 125, 140, 160, 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 4.5 W (unknown quality)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: Registratore A Nastro G250-N - Geloso SA; Milano
- Dimensions (WHD)
- 500 x 230 x 340 mm / 19.7 x 9.1 x 13.4 inch
- Notes
-
Prezzo nel 1956: 160.000 LIT. Velocità nastro 19 cm/sec
Risposta in frequenza da 65 Hz a 9000 Hz; Consumo da 55 a 120 VA.
- Net weight (2.2 lb = 1 kg)
- 16 kg / 35 lb 3.9 oz (35.242 lb)
- Source of data
- Bollettino Tecnico Geloso
- Mentioned in
- Catalogo Generale Radioprodotti Geloso 1954-55 p. 134
- Literature/Schematics (1)
- Riparazioni - Scuola Radio Elettra (pag. G16)
- Author
- Model page created by Alessandro De Poi. See "Data change" for further contributors.
