Registratore Famiglia G256

• Country
• Italy

• Manufacturer / Brand
• Geloso SA; Milano

• Year
• 1959

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 77017

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• ECC83 EL95 DM70

• Number of Transistors

• Semiconductors
• Selenium-Rectifier

• Main principle
• Audio-Amplification

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 110-220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 2 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

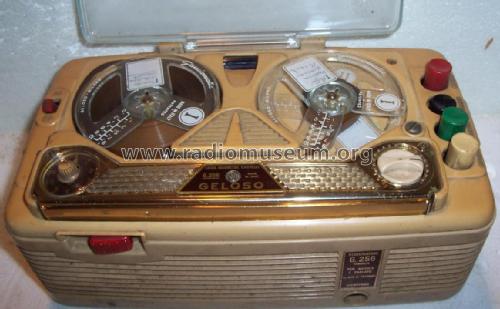

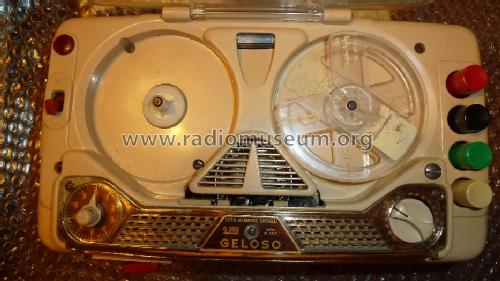

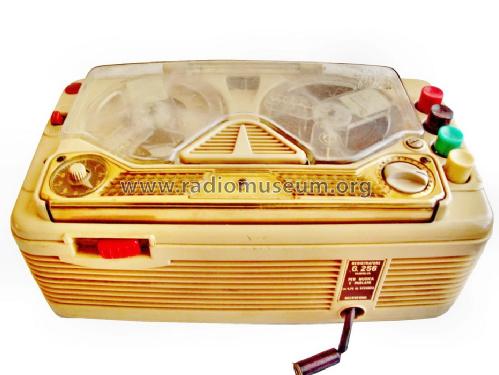

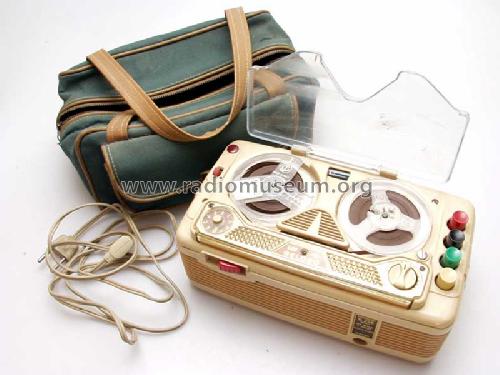

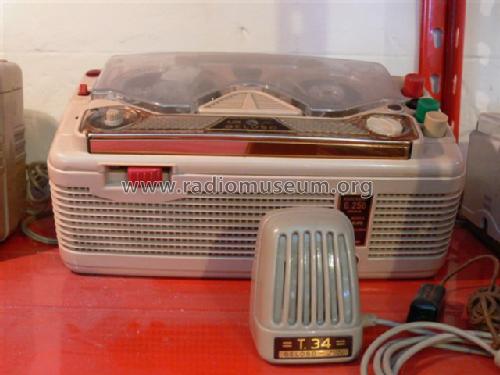

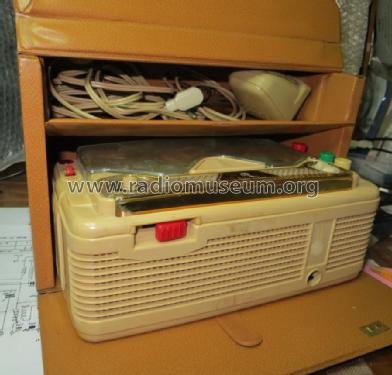

• Model: Registratore Famiglia G256 - Geloso SA; Milano

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 260 x 100 x 140 mm / 10.2 x 3.9 x 5.5 inch

• Notes
• Spulendurchmesser max. 84 mm . In Österreich Verkaufspreis 1980.- öS

• Net weight (2.2 lb = 1 kg)
• 2.950 kg / 6 lb 8 oz (6.498 lb)

• Price in first year of sale
• 38,000.00 ITL

• Mentioned in
• - - Manufacturers Literature (Bollettino Tecnico Geloso n. 74, primavera 1959)

• Author
• Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
