G309

Geloso SA; Milano

Data
Forum
Pictures
Collections

  • Year
  • 1957 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 291618

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Number of Transistors
  • Main principle
  • Superheterodyne (common); ZF/IF 467 kHz
  • Wave bands
  • Broadcast plus more than 2 Short Wave bands.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 120; 200; 220; 240 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
  • Material
  • Bakelite or Plastics (type unknown)
  • from Radiomuseum.org
  • Model: G309 - Geloso SA; Milano
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 250 x 150 x 120 mm / 9.8 x 5.9 x 4.7 inch
  • Notes

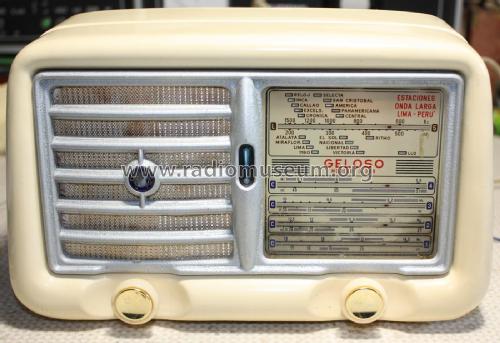

  • MW and 4 SW bands. Dial scale of this model ia planned for Latin America. AC only but warning ! there is no transformer on the power supply just an autotransformer that means power line on the frame !

  • Net weight (2.2 lb = 1 kg)
  • 1.950 kg / 4 lb 4.7 oz (4.295 lb)
  • Mentioned in
  • -- Original-techn. papers. (D.E. Ravalico, “Il Radio Libro XVII edizione, U. Hoepli 1960.)
  • Author
  • Model page created by Georges Werts. See "Data change" for further contributors.
