G55-R
Geloso SA; Milano
- Country
- Italy
- Manufacturer / Brand
- Geloso SA; Milano
- Year
- 1938/1939
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 106347
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 467 kHz
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- AC/DC-set / 110; 125; 140; 160; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org

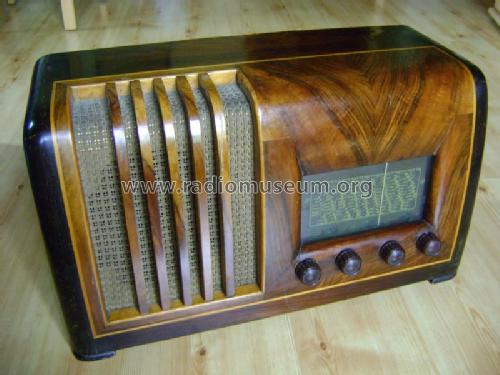

- Model: G55-R - Geloso SA; Milano
- Shape
- Miscellaneous shapes - described under notes.
- Notes
-
Il G55R (come il G50R e il G57R) poteva utilizzare i mobili nr 3040 (andamento orizzontale), nr 3011 (verticale) e 3706 (console con giradischi).
Controllo di tono.
- Source of data
- Guida Pratica Antique Radio II (2000)
- Mentioned in
- Guida Pratica Antique Radio III (2000)
- Literature/Schematics (1)
- -- Schematic (Schemario degli apparecchi Radio, D.E. Ravalico, V edizione Hoepli 1954.)
- Author
- Model page created by Alessandro De Poi. See "Data change" for further contributors.
