- Country
- Italy
- Manufacturer / Brand
- Geloso SA; Milano
- Year
- 1935
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 121550
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superhet with RF-stage; ZF/IF 350 kHz
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 140; 160; 220; Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Power out
- 10 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: G76 - Geloso SA; Milano
- Shape

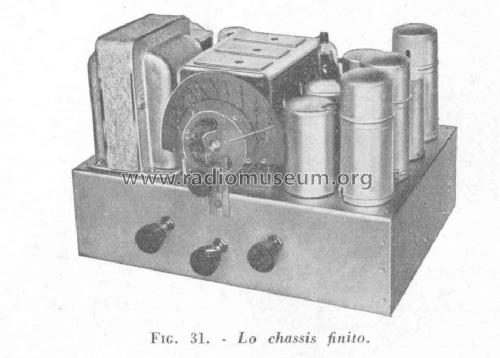

- Chassis only or for «building in»
- Notes
-
Il trasformatore di alimentazione era dotato di 2 secondari per i filamenti, 6,3 e 2,5 V, per cui modificando solo i relativi collegamenti era possibile installare la 78 o la 58, la 6A7 o la 2A7, la 75 o la 2A6.
Controllo di tono. Ingresso Fono.
- Price in first year of sale
- 684.00 LIT
- Literature/Schematics (1)
- Bollettino Tecnico Geloso (n. 13-14 estate 1935)
- Literature/Schematics (2)
- Schemario di apparecchi radio a valvole (II edizione, D.E. Ravalico - Hoepli - 1945)
- Author
- Model page created by Giuseppe Antonio Tusini. See "Data change" for further contributors.
