G76RE Export only
Geloso SA; Milano
- Country
- Italy
- Manufacturer / Brand
- Geloso SA; Milano
- Year
- 1947 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 98310

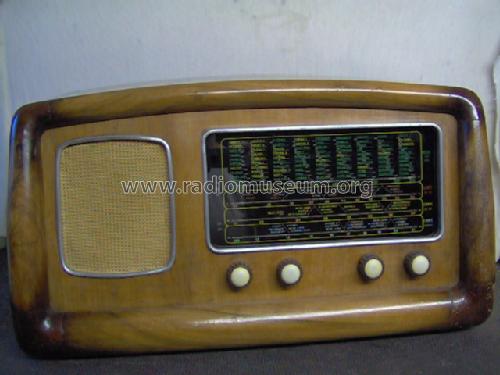

Knob on the right of the front is missing

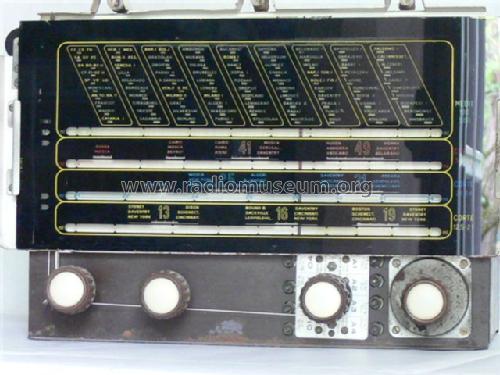

Dettaglio interno valvole
radio della mia collezione
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 467 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 110: 125; 140; 160; 220; 250 Volt

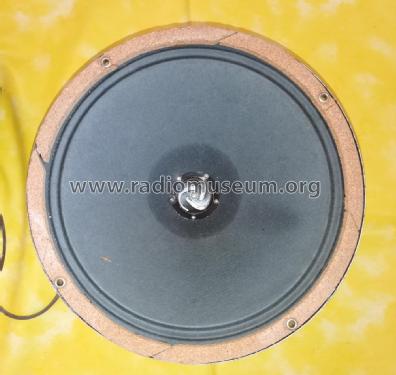

- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch
- Power out
- 2.5 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: G76RE Export only - Geloso SA; Milano
- Shape
- Tablemodel, low profile (big size).
- Notes
- Solo Esportazione.
Export only
- Literature/Schematics (1)
- -- Schematic
- Author
- Model page created by Giuseppe Antonio Tusini. See "Data change" for further contributors.
