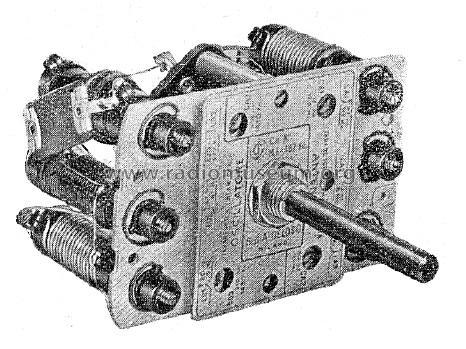

Gruppo Alta Frequenza 2650

Geloso SA; Milano

  • Year
  • 1950 ??
  • Category
  • Radio module post 1925 (not a part, not a key)
  • Radiomuseum.org ID
  • 352370

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Wave bands
  • Broadcast plus 2 Short Wave bands.
  • Power type and voltage
  • No Power needed
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Various materials
  • from Radiomuseum.org
  • Model: Gruppo Alta Frequenza 2650 - Geloso SA; Milano
  • Shape
  • Chassis only or for «building in»
  • Notes
  • Gruppo per alta frequenza con onde Medie 190-580 metri e 2 gamme di onde Corte 13-44 e 43-130 metri.
    Ingresso per Fono. Uscita su 6BE6 che forniva la media frequenza a 467 kHz.
    Commutatore rotante per cambio gamma.

  • Mentioned in
  • -- Schematic
  • Author
  • Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
