• Country
• Italy

• Manufacturer / Brand
• Geloso SA; Milano

• Year
• 1960 ??

• Category
• Radio module post 1925 (not a part, not a key)

• Radiomuseum.org ID
• 353056

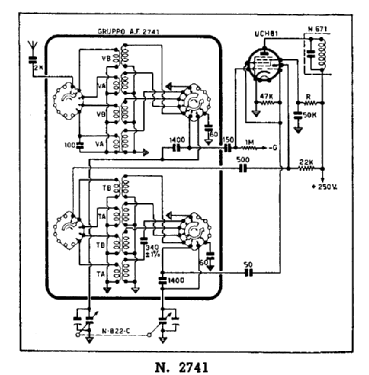

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• No Power needed

• Loudspeaker
• - - No sound reproduction output.

• Material
• Various materials

• from Radiomuseum.org
• Model: Gruppo Alta Frequenza 2741 - Geloso SA; Milano

• Shape
• Chassis only or for «building in»

• Notes

• Gruppo per alta frequenza con onde Medie: 580 ÷ 180 metri e tre gamme di onde Corte: 102 ÷ 52, 52 ÷ 28 e 28,5 ÷ 15 metri.
  Uscita su UCH81.

• Mentioned in
• -- Schematic

• Author
• Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
