GTV963
Geloso SA; Milano
- Country
- Italy
- Manufacturer / Brand
- Geloso SA; Milano
- Year
- 1956 ??
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 128211
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 22
- Valves / Tubes
- 12AT7 6BK7A 6AU6 6AL5 6AT6 6AQ5 6AU6 6AU6 6CB6 6CB6 6AL5 6CL6 6AU6 6BX7GT 6SN7GT 6SN7GT 6CU6 6AX4GT 1B3GT 21ALP4A 5U4GA 6AX5GT
- Main principle
- Superheterodyne (common)
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 140; 160; 220; 280 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org

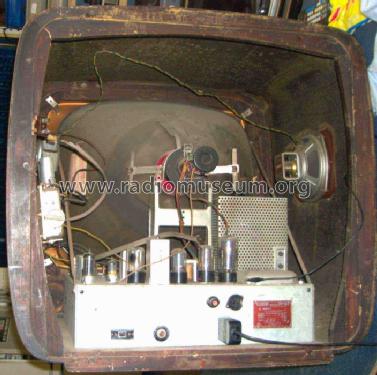

- Model: GTV963 - Geloso SA; Milano
- Shape
- Tablemodel, with any shape - general.
- Notes
-
Televisore in bianco/nero con sola VHF.
- Literature/Schematics (1)
- -- Schematic (“Introduzione alla Televisione” E.Costa, edizioni U.Hoepli, 1958.)
- Author
- Model page created by Alessandro De Poi. See "Data change" for further contributors.
