G6/81
Geloso SA; Milano
- Country
- Italy
- Manufacturer / Brand
- Geloso SA; Milano
- Year
- 1971
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 122954

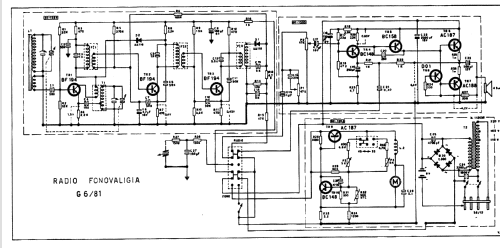

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 10
- Main principle
- Superheterodyne (common); ZF/IF 475 kHz
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Details
- Record Player (not changer)
- Power type and voltage
- Line / Batteries (any type) / 220 / 6× 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 1.5 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: G6/81 - Geloso SA; Milano
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 380 x 110 x 250 mm / 15 x 4.3 x 9.8 inch
- Notes
- Radiofonografo G.6/81. Radiofono valigia, ricevitore in OM da 600-1400 kHz più giradischi a due velocità: 33, 45 rpm. Altoparlante a magnete rovesciato posto nel coperchio.
Portable broadcast radio and record player.
- Literature/Schematics (1)
- Bollettino Tecnico Geloso (n. 115-116 autunno-inverno 1971-72)
- Author
- Model page created by Giuseppe Antonio Tusini. See "Data change" for further contributors.
