• Country
• Italy

• Manufacturer / Brand
• Geloso SA; Milano

• Year
• 1970

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 122581

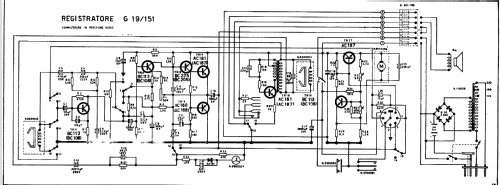

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 8

• Semiconductors
• BC113 BC113 BC225 AC181 AC181 AC180 AC187 unknown_tr B30C300

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 220; 6x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 1.3 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Registratore a cassette G19/151 - Geloso SA; Milano

• Shape
• Portable set > 8 inch (also usable without mains)

• Price in first year of sale
• 53,800.00 LIT

• Mentioned in
• -- Original prospect or advert (La Domenica del Corriere, 1970)

• Literature/Schematics (1)
• -- Schematic

• Literature/Schematics (2)
• Bollettino Tecnico Geloso (n. 114 autunno-inverno 1970-71)

• Author
• Model page created by Giuseppe Antonio Tusini. See "Data change" for further contributors.
