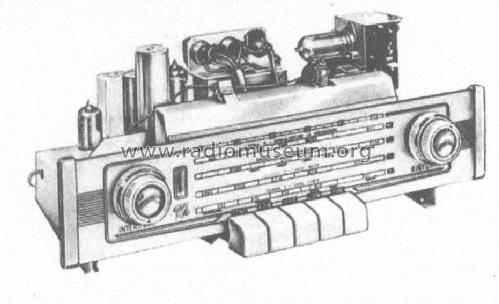

Sintonizzatore G537
Geloso SA; Milano
- Country
- Italy
- Manufacturer / Brand
- Geloso SA; Milano
- Year
- 1964
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 123059
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 467/10700 kHz
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Wired Wireless Receiver (RF!)
- Power type and voltage
- Alternating Current supply (AC) / 100-230 Volt
- Loudspeaker
- - For headphones or amp.
- from Radiomuseum.org
- Model: Sintonizzatore G537 - Geloso SA; Milano
- Dimensions (WHD)
- 350 x 150 x 170 mm / 13.8 x 5.9 x 6.7 inch
- Notes
- Gamme d'onda: FM 87-108 MHz, OC1 20-65 mt, OM 180-580 mt, OL (filodiffusione) 850-2000 mt.
Ponte raddrizzatore al selenio B250/C100, Diodi 2xOA79.
- Net weight (2.2 lb = 1 kg)
- 2.8 kg / 6 lb 2.7 oz (6.167 lb)
- Literature/Schematics (1)
- Bollettino Tecnico Geloso (n 93 estate 1964)
- Author
- Model page created by Giuseppe Antonio Tusini. See "Data change" for further contributors.
