Super G901/ST G901ST
Geloso SA; Milano
- Country
- Italy
- Manufacturer / Brand
- Geloso SA; Milano
- Year
- 1949
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 121831

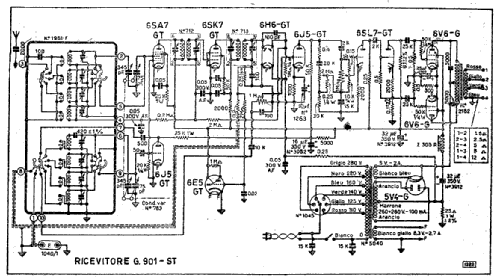

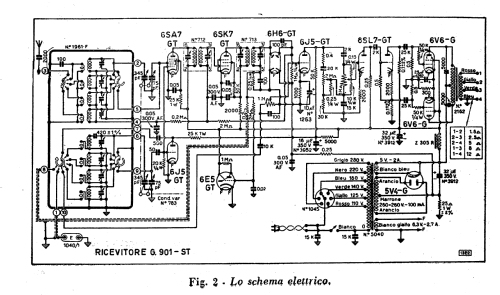

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 9
- Main principle
- Superheterodyne (common); ZF/IF 467 kHz
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 140; 160; 220; 280 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 8 W (unknown quality)
- from Radiomuseum.org
- Model: Super G901/ST G901ST - Geloso SA; Milano
- Shape
- Chassis only or for «building in»
- Notes
- apparecchio simile al G901 (bollettino geloso N. 41) ma nella variante senza tastiera.
- Literature/Schematics (1)

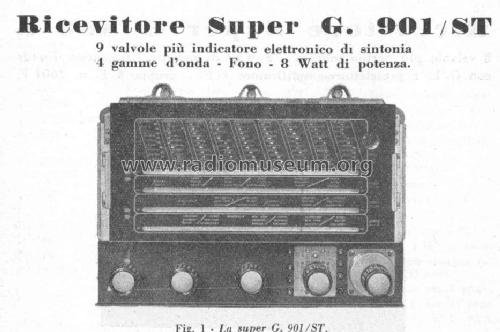

- Bollettino Tecnico Geloso (N. 42 autunno 1949)
- Author
- Model page created by Giuseppe Antonio Tusini. See "Data change" for further contributors.
