Transistor Record Changer G1/301-V

Geloso SA; Milano

Data
Forum
Pictures
Collections

  • Year
  • 1968
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 287731

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 13
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 125; 160; 220; 240 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Transistor Record Changer G1/301-V - Geloso SA; Milano
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 630 x 230 x 340 mm / 24.8 x 9.1 x 13.4 inch
  • Notes

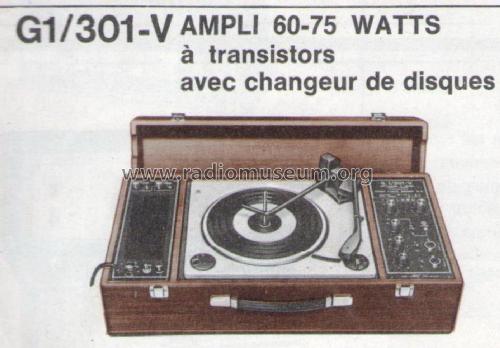

  • Transistor amplifier with record changer, power 60-75 W, input for 2 high-impedance microphones, separately adjustable and mixable, automatic turn-disc incorporated in the case, output impedance is 4 or 8 Ohm, power supply from 110 to 240 volts.

    Regolazione toni alti e bassi. Ingresso per un giradischi esterno.
    12 BY126 8 dei quali costituiscono un raddrizzatore a ponte con 4 + 4 in parallelo.

  • Net weight (2.2 lb = 1 kg)
  • 16 kg / 35 lb 3.9 oz (35.242 lb)
  • Mentioned in
  • - - Manufacturers Literature
  • Literature/Schematics (1)
  • -- Schematic
  • Author
  • Model page created by Manuel Albano Neves. See "Data change" for further contributors.
