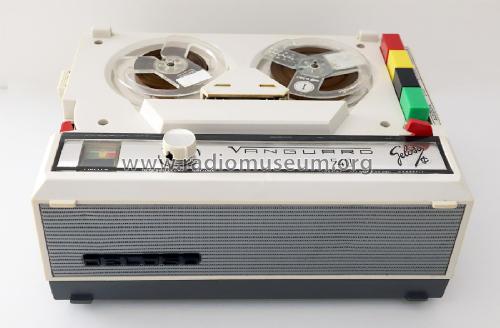

Vanguard G540

• Country
• Italy

• Manufacturer / Brand
• Geloso SA; Milano

• Year
• 1965

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 92566

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• AR168 AR168 AR168 1W8173 1W8172 1W8216 B30C250

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details

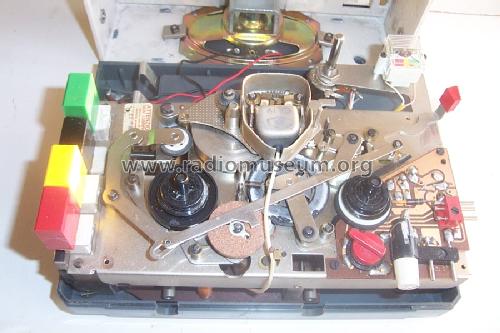

• Tape Recorder

• Power type and voltage
• Line / Batteries (any type) / 105-240 / 8 x 1,5 V / 12 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Vanguard G540 - Geloso SA; Milano

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 255 x 110 x 200 mm / 10 x 4.3 x 7.9 inch

• Notes

• Possibilità di funzionamento: a pile entrocontenute, da accumulatore a 12V, rete a corrente alternata.
  Risposta frequenza: 80-6500Hz
  Velocità del nastro: 4,75 cm/sec (1,87 inch/sec)
  Rapporto segnale/disturbo: >50 dB

  Licenza Magnetofoni Castelli

• Net weight (2.2 lb = 1 kg)
• 3.1 kg / 6 lb 13.3 oz (6.828 lb)

• Price in first year of sale
• 38,500.00 ITL

• Literature/Schematics (1)
• Bollettino Tecnico Geloso (n. 97, estate 1965)

• Literature/Schematics (2)
• -- Original prospect or advert (La Domenica del Corriere, 1963)

• Author
• Model page created by Carlos A. Pieroni-García. See "Data change" for further contributors.
