• Country
• Argentina

• Manufacturer / Brand
• Geloso Argentina; Buenos Aires

• Year
• 1949

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 348384

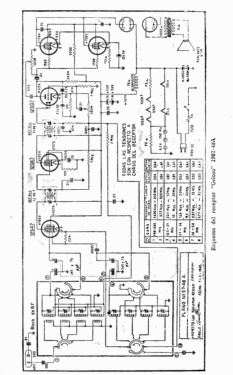

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12SA7 12SK7 12SQ7 50L6 50L6 50L6

• Main principle
• Superheterodyne (common); ZF/IF 467 kHz; 2 AF stage(s)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Direct Current supply (DC) / 110 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm

• Power out
• 3 W (unknown quality)

• from Radiomuseum.org
• Model: 1967 48A - Geloso Argentina; Buenos Aires

• Mentioned in
• -- Schematic

• Author
• Model page created by Toni Gutiérrez García. See "Data change" for further contributors.
