• Country
• Germany

• Manufacturer / Brand
• Gemeinschaftserzeugnisse Vorkrieg

• Year
• 9999/9999

• Category
• Radio part (not a module)

• Radiomuseum.org ID
• 186914

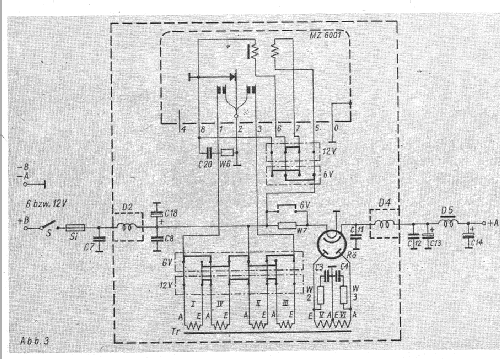

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 2 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Dublette zu Röhre ID= 55496 - Gemeinschaftserzeugnisse

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 40 x 100 x 40 mm / 1.6 x 3.9 x 1.6 inch

• Notes
• Zerhackerpatrone für den Gleichspannungswandler EW.b für den Torn.E.b.

• Net weight (2.2 lb = 1 kg)
• 0.150 kg / 0 lb 5.3 oz (0.33 lb)

• Source of data
• - - Data from my own collection

• Author
• Model page created by Heinz Schmidt. See "Data change" for further contributors.
