• Country
• United States of America (USA)

• Manufacturer / Brand
• Gemini Sound Products Corp.; Carteret, Edison, Elizabeth, NJ

• Year
• 2002 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 338747

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Details
• Record Player (not changer); Hi-Fi equipment

• Power type and voltage
• Alternating Current supply (AC) / 115/230 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Manual Belt-Drive turntable XL-200 - Gemini Sound Products Corp.;

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 17.75 x 5.75 x 14 inch / 451 x 146 x 356 mm

• Notes

• The XL-200 is a manually controlled belt drive stereo turntable with speed selection and variation controls and strobe speed indicator capable of use with either 50 or 60 Hz line power.  The headshell weight is 5.6 grams.   Wow and flutter less than 0.25% WRMS.

• Net weight (2.2 lb = 1 kg)
• 8 lb 0 oz (8 lb) / 3.632 kg

• Mentioned in

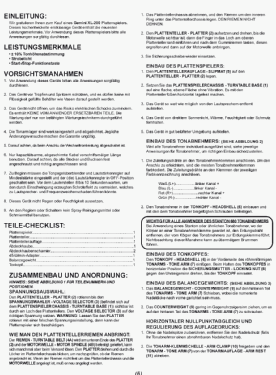

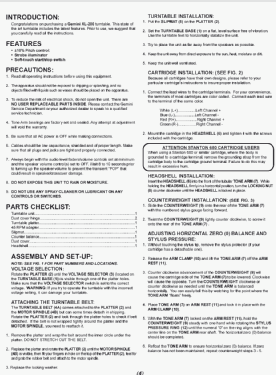

• - - Manufacturers Literature (Manual dated copyright 2002)

• Author
• Model page created by Rich Post. See "Data change" for further contributors.
