- Country
- Australia
- Manufacturer / Brand
- Genalex, BGE (brand), British General Electric Co. Pty Ltd.; Sydney, NSW.
- Year
- 1938/1939
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 168687

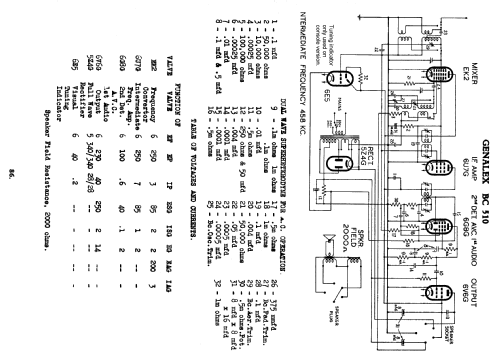

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 458 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 200-260 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: BC510 [Console] - Genalex, BGE brand, British
- Shape
- Console, Lowboy (legs < 50 %).
- Price in first year of sale
- 26.00 Aus£
- Circuit diagram reference
- Australian Official Radio Service Manual Vol. I I
- Literature/Schematics (1)
- Radio & Electrical Retailer, Australia (13/7/39 Also in Mingay's Radio Diagram & I.F. Index)
- Author
- Model page created by Stuart Irwin. See "Data change" for further contributors.
