• Country
• Canada

• Manufacturer / Brand
• General Motors of Canada; Oshawa

• Year
• 1966 ?

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 324417

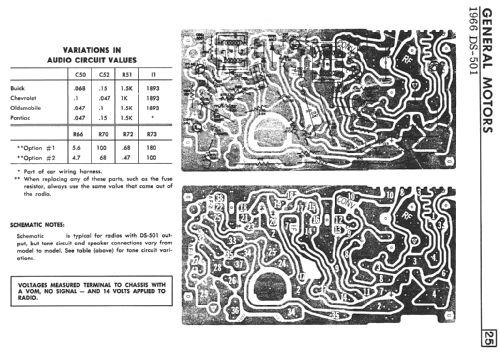

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• DS-25 DS-25 DS-25 DS-46 DS-46 DS-501

• Main principle
• Superhet with RF-stage; ZF/IF 262 kHz; 3 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org
• Model: 1966 [With DS501 Output] - General Motors of Canada;

• Shape
• Chassis only or for «building in»

• Notes

• This General Motors AM car radio is used in 1966 Buick, Chevrolet, Oldsmobile and Pontiac model cars.

• Literature/Schematics (1)
• Radio College of Canada (RCC) (1966 Supplement 77)

• Author
• Model page created by Tom Seeger. See "Data change" for further contributors.

• Other Models

• Here you find 113 models, 22 with images and 111 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from General Motors of Canada; Oshawa
