- Country
- Canada
- Manufacturer / Brand
- General Motors of Canada; Oshawa
- Year
- 1965 ?
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 325130

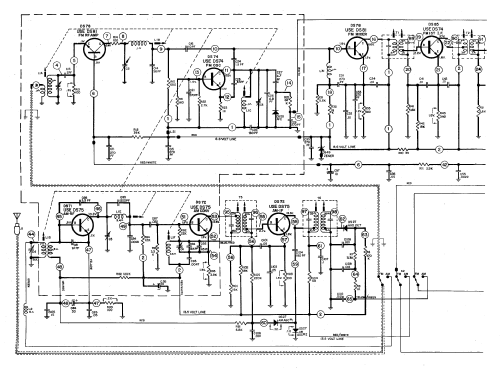

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 13
- Semiconductors
- DS-81 DS-74 DS-81 DS-74 DS-75 DS-75 DS-75 DS-74 DS-74 DS-74 DS-46 or. DS-66 DS-66 DS-501
- Main principle
- Superhet with RF-stage; ZF/IF 262/10700 kHz; 3 AF stage(s)
- Tuned circuits
- 7 AM circuit(s) 11 FM circuit(s)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Metal case
- from Radiomuseum.org
- Model: 981060 - General Motors of Canada;
- Shape
- Chassis only or for «building in»
- Notes
-
General Motors Canada model 981060 AM/FM car radio. Full time AFC on FM.
- Literature/Schematics (1)
- Radio College of Canada (RCC) (1966 Supplement 78)
- Author
- Model page created by Tom Seeger. See "Data change" for further contributors.
