982697

General Motors of Canada; Oshawa

Data
Forum
Pictures
Collections

  • Year
  • 1951
  • Category
  • Car Radio, perhaps also + sound player/recorder
  • Radiomuseum.org ID
  • 181732

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superhet with RF-stage; ZF/IF 260 kHz
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 6 inch = 15.2 cm
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: 982697 - General Motors of Canada;
  • Shape
  • Chassis only or for «building in»
  • Notes
  • Canada Supplements. Vibrator for +B.
  • Circuit diagram reference
  • Radio College of Canada
  • Literature/Schematics (1)

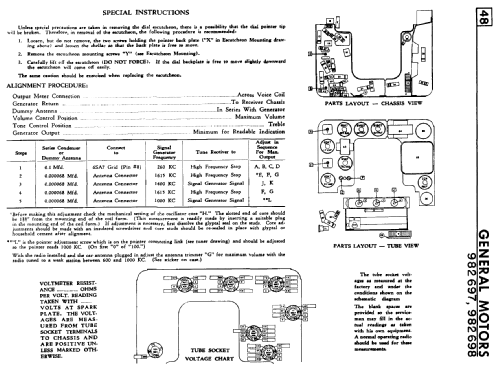

  • Canada Supplements General motors page 47 to 49
  • Author
  • Model page created by Dirk Taekels. See "Data change" for further contributors.
